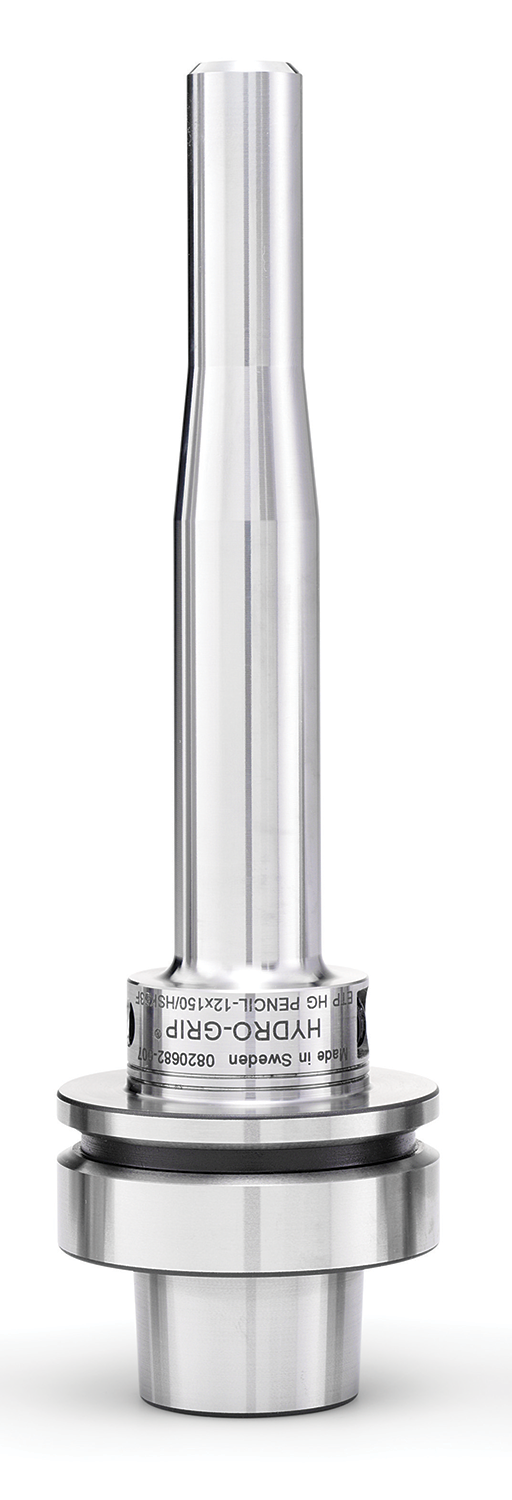

ETP HYDRO-GRIP® PENCIL is with its extreme slim design one of the most versatile holder on the market. An extensive range of standard dimensions and lengths optimizes your productivity when machining deep cavities and complex components.
FEATURES & BENEFITS
-Quick and easy tool change
-High performance
-Pencil design enabling machining in deep cavities and complex components.
-Excellent runout

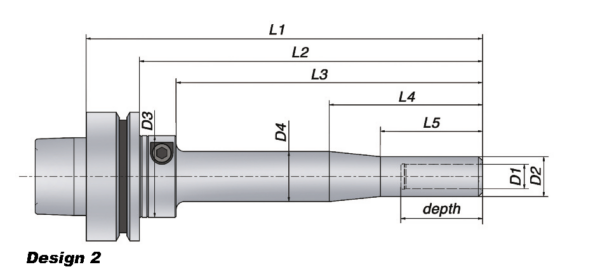

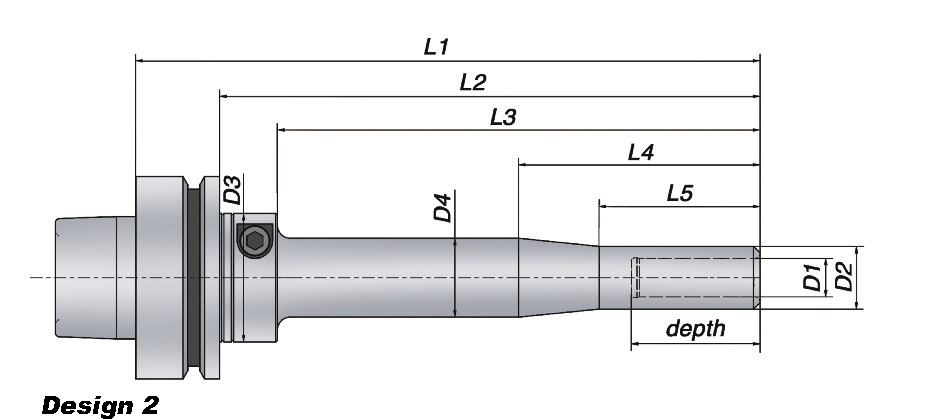

| Tool diameter D1 mm | 12.7 mm |
|---|---|
| Dimension D2 mm | 19.5 mm |
| Dimension D3 mm | 40 mm |
| Dimension D4 mm | 24.5 mm |
| Gauge length L1 mm | 194 mm |
| Dimension L2 mm | 168 mm |
| Dimension L3 mm | 150 mm |
| Dimension L4 mm | 75 mm |
| Dimension L5 mm | 50 mm |
| Tool insert depth | 40 mm |
View available reduction sleeves for 1/2"
Requires the use of the ETP Torque Wrench ETP-19050
Maximum RPM 25,000
| Toolholder Style | HSK63F |
|---|---|
| Shank Diameter | 1/2" |
| Manufacturer | ETP Transmission |
