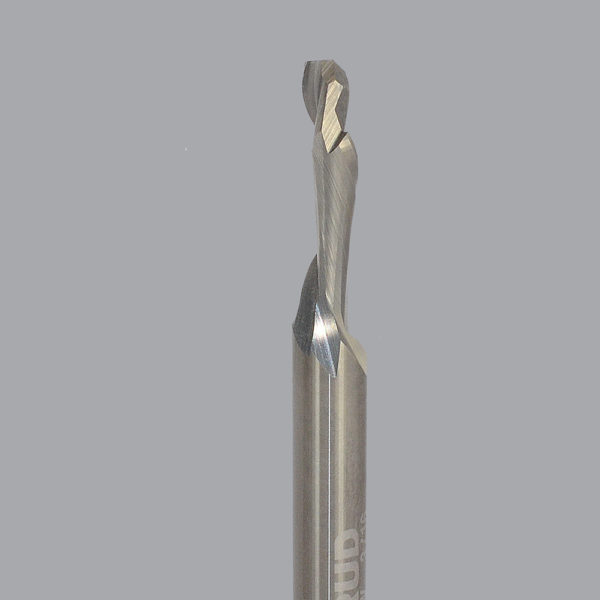

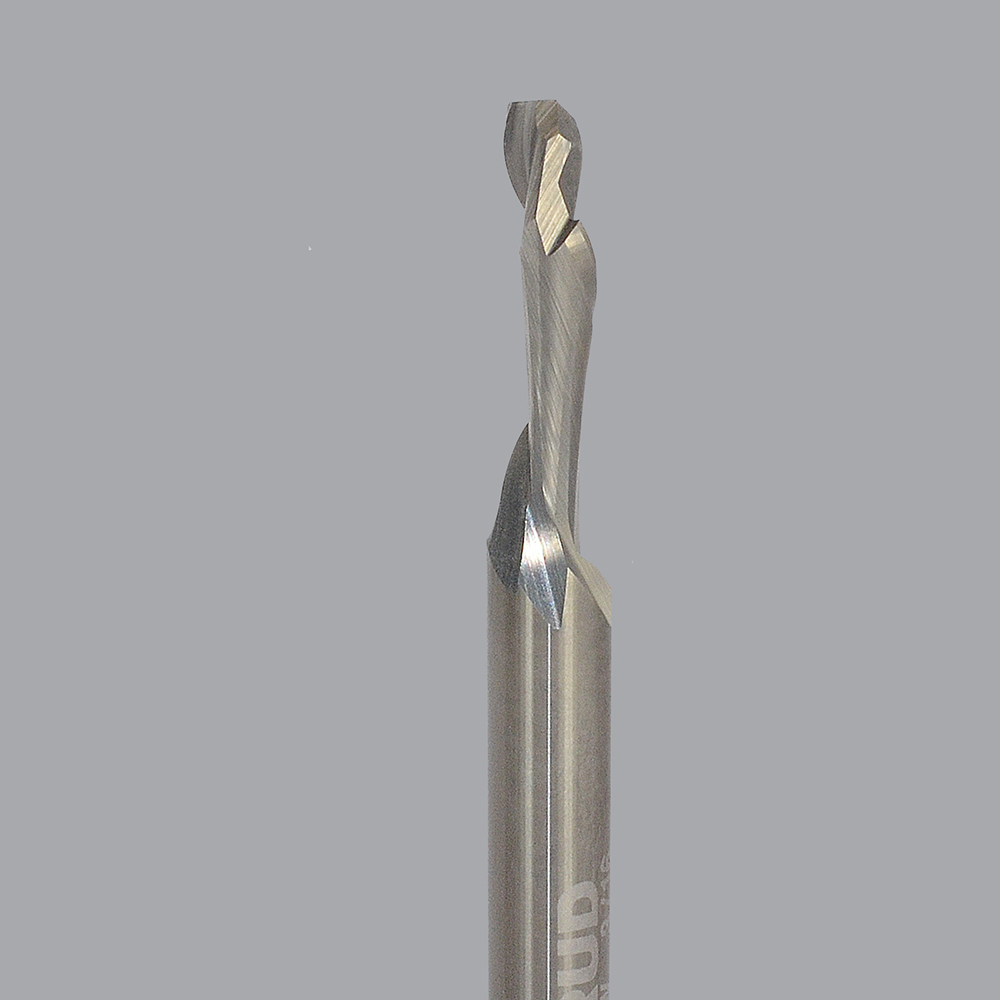

Designed for maximum life when cutting in highwear applications. Unique geometries and carbides improve the wear characteristics of the tool under abrasive applications with superior part finish.
| Cutting Diameter | 3/16" |
|---|---|
| Manufacturer | Onsrud |
| Cutting Length | 5/8" |
| Upcut Length | 0.3" |
| Shank Diameter | 1/4" |
| Overall Length | 2-1/2" |
| Number of Flutes | 1 |
| Helix Angle | 30° |
| Cutting Style | Standard |
| Spiral Style | Compression |
| Rotation Direction | Right-Hand |
| Bit Material | Solid Carbide |
| Softwood | Y |
| Hardwood | Y |
| Plywood | Y |
| MDF | Y |
| Laminated Wood | Y |
