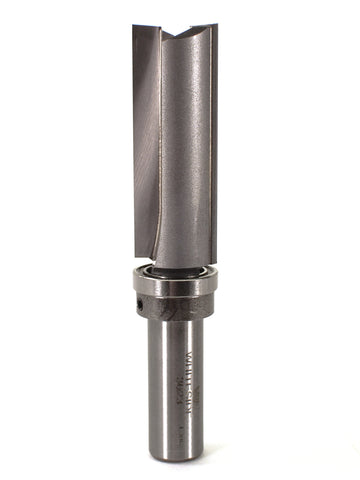

Template bits usually consist of a straight bit with a bearing. Simply align the bearing with your template and cut out your project. Whiteside recommends using bits over 3/4″ diameter in 1/2″ shank whenever possible due to the fragile nature of the B19 bearing. Bearing: B19
| Manufacturer | Whiteside Machine Company |
|---|---|
| Cutting Diameter | 3/4" |
| Cutting Length | 2" |
| Shank Diameter | 1/2" |
| Overall Length | 3-3/4" |
| Number of Wings | 2 |
| Cutting Style | Template |
| Rotation Direction | Right-Hand |
| Bit Material | Carbide Tipped |
| Softwood | Y |
| Hardwood | Y |
| Plywood | Y |
| MDF | Y |
| Laminated Wood | Y |
