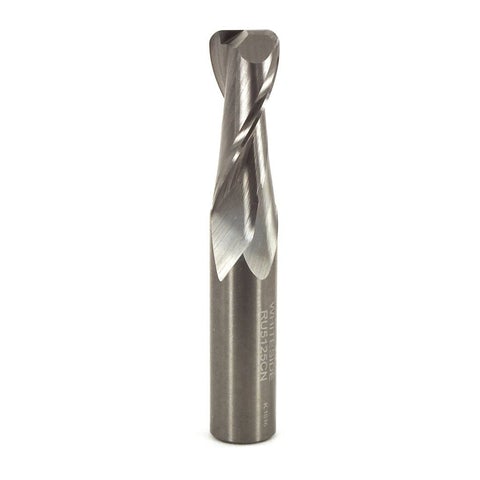

Cove Nose Spirals leave a flat bottom with curved edges during cutting while still providing the best shear cutting angle of their spiral counterparts. These are mainly used with small CNC’s but can be used in a router or router table. The up cut flute design pulls chips up and away from the workpiece.
| Manufacturer | Whiteside Machine Company |
|---|---|
| Cutting Diameter | 1/2" |
| Cutting Length | 1-1/4" |
| Radius | 1/8" |
| Shank Diameter | 1/2" |
| Overall Length | 3" |
| Number of Flutes | 2 |
| Cutting Style | Covenose |
| Spiral Style | Up-Cut |
| Rotation Direction | Right-Hand |
| Bit Material | Solid Carbide |
| Softwood | Y |
| Hardwood | Y |
| Plywood | Y |
| MDF | Y |
