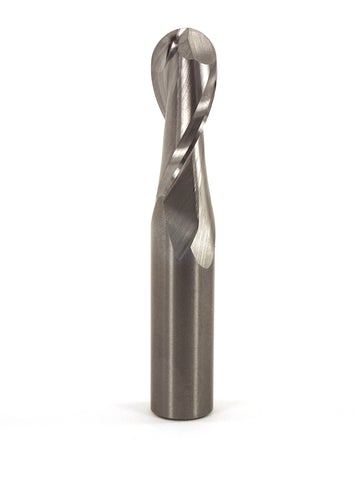

Ball Nose Spirals leave a rounded bottom during cutting while still providing a better shear cutting angle like their standard spiral counterparts. These are mainly used with small CNC’s but can be used in a router or router table. The up cut flute design pulls chips up and away from the work piece.
| Manufacturer | Whiteside Machine Company |
|---|---|
| Cutting Diameter | 1/2" |
| Cutting Length | 1-1/4" |
| Radius | 1/4" |
| Shank Diameter | 1/2" |
| Overall Length | 3" |
| Number of Flutes | 2 |
| Cutting Style | Ballnose |
| Spiral Style | Up-Cut |
| Rotation Direction | Right-Hand |
| Bit Material | Solid Carbide |
| Softwood | Y |
| Hardwood | Y |
| Plywood | Y |
| MDF | Y |
