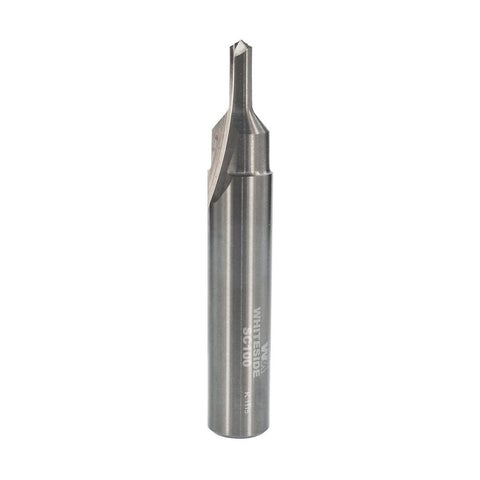

Solid carbide bit with a plunge router to cut slots for #8 screws. Screw slots allow for the seasonal movement of larger wooden parts such as table tops. These bits will also cut up to a 7/16″ deep recess for the screw head. 82° ountersink.
| Manufacturer | Whiteside Machine Company |
|---|---|
| Cutting Diameter | 7/16" |
| Cutting Length | 15/16" |
| Radius | 7/16" |
| Angle | 3" |
| Shank Diameter | 1/2" |
| Overall Length | 3" |
| Number of Flutes | 2 |
| Cutting Style | Standard |
| Spiral Style | Straight |
| Rotation Direction | Right-Hand |
| Bit Material | Solid Carbide |
| Softwood | Y |
| Hardwood | Y |
| Plywood | Y |
| MDF | Y |
