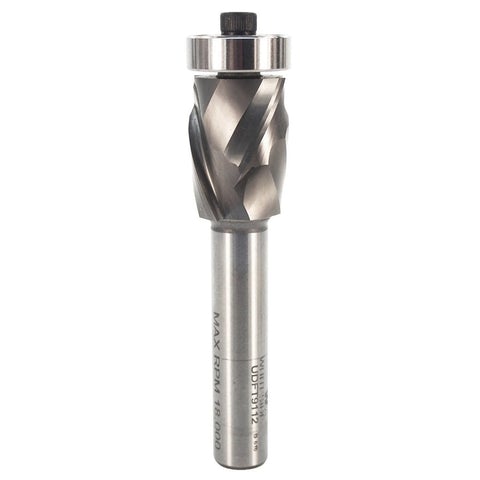

The “ULTIMATE” Flush Trim Bit has a compression design to provide the ultimate cut when using templates. These bits leave a crisp, clean edge on both the top and bottom edge of the work piece.
| Manufacturer | Whiteside Machine Company |
|---|---|
| Cutting Diameter | 7/8" |
| Cutting Length | 1-1/8" |
| Shank Diameter | 1/2" |
| Overall Length | 3-3/4" |
| Number of Flutes | 2 |
| Cutting Style | Flush Trim |
| Spiral Style | Compression |
| Rotation Direction | Right-Hand |
| Bit Material | Solid Carbide |
| Softwood | Y |
| Hardwood | Y |
| Plywood | Y |
| MDF | Y |
| Laminated Wood | Y |
